Material
Installation
Seal Type
Priming Type
pumps finder labels
Series
Design
Material
Tmax
Qmax
Hmax
MPN
  • Hermetically sealed
  • Magnetic drive
  • PP
  • PVDF
  1. 80 °C
  2. 95 °C
  1. 35 m³/h
  1. 32 m
view MPN
NHM
  • Hermetically sealed
  • Magnetic coupling
  • PP
  • PVDF
  1. 80 °C
  2. 95 °C
  1. 42 m³/h
  2. 95 m³/h
  1. 27 m
view NHM
U
  • Single-acting mechanical seal
  • PVDF
  1. 95 °C
  1. 32 m³/h
  1. 40 m
view U
T
  • Immersion pump
  • dry-run capable
  • trockenlaufsicher
  • PP
  • PVDF
  • Edelstahl 1.4571 (auf Anfrage)
  1. 80 °C
  2. 95 °C
  3. 150 °C
  1. 18 m³/h
  1. 26 m
view T
UP
  • Single mechanical seal
  • Stainless steel
  1. 180 °C
  1. 28 m³/h
  1. 39 m
view UP
UP-DO
  • Double-acting mechanical seal
  • Stainless steel
  1. 150 °C
  1. 28 m³/h
  1. 39 m
view UP-DO
NEOCHEM CORE
  • ISO2858/ISO15783
  • Magnetic drive
  • PFA
  1. 150 °C
  1. 180 m³/h
  1. 88 m
view NEOCHEM CORE
NEOCHEM BASE
  • ISO2858
  • Magnetic coupling
  • ETFE-CF
  1. 95 °C
  1. 108 m³/h
  1. 76 m
view NEOCHEM BASE
P
  • Peripheral Turbine
  • Magnetic drive
  • PP
  1. 80 °C
  1. 5 m³/h
  1. 40 m
view P
SMP
  • Self-priming
  • Magnetic drive
  • PP
  1. 60 °C
  1. 23 m³/h
  1. 24 m
view SMP

All 10 Series

Centrifugal Pumps made of Stainless steel

Horizontal | Normal-priming | Mechanical seal

UP
Series UP

Normal-Priming Centrifugal Pumps
Made of Stainless Steel with Single or Double Mechanical Seal

Details about UP
  • Robust housing parts with high wall thickness
  • Compact close-coupled design
  • Easy installation
  • Suitable for high temperatures
UP-DO
Series UP-DO

Normal-Priming Centrifugal Pumps
Made of Stainless Steel with Single or Double Mechanical Seal

Details about UP-DO
  • Dry run safe when using a pressurized seal support system
  • No leakage of toxic or environmentally hazardous liquids
  • Suited for high temperatures
  • Meets the requirements of the German TA Luft air pollution control regulation

Centrifugal Pumps made of Plastic

Horizontal | Normal-priming | Mechanical seal

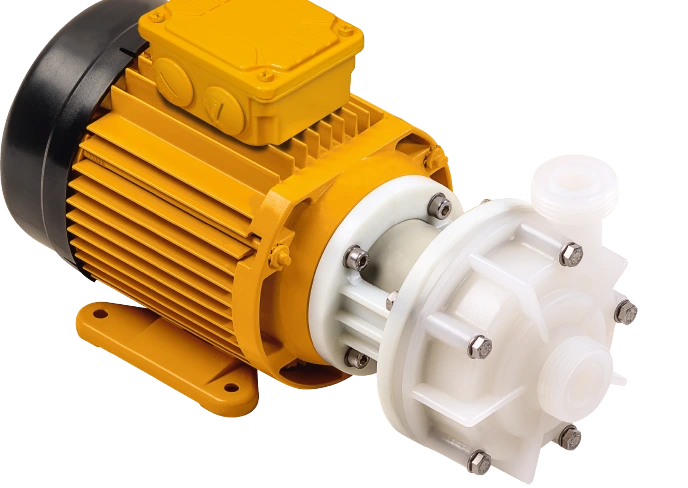

U
Series U

Normal-Priming Centrifugal Pumps
Made of PVDF with Single Mechanical Seal

Details about U
  • Plastic centrifugal pumps made of PVDF with single-acting mechanical seal
  • Cost-effective and robust alternative to magnetic drive pumps
  • Use also possible with ferromagnetic particles in the fluid
  • Compact close-coupled design
  • Suitable for corrosive and aggressive fluids

Centrifugal Pumps made of Plastic

Horizontal | Normal-priming | Magnetic drive

MPN
Series MPN

Normal-Priming Centrifugal Pumps
Made of PVDF or PP with Magnetic Coupling

Details about MPN
  • Hermetically sealed, magnetic drive, PP or PVDF
  • Up to 95 °C, flow rate up to 35 m³/h, head up to 32 m
  • Extremely proven pump, used in over 10,000 applications
  • Resistant to insufficient lubrication and partial dry running thanks to generously dimensioned plain bearings – no plug-in shaft
  • Virtually maintenance-free in normal operation thanks to generously dimensioned plain bearings
NHM
Series NHM

Normal-Priming Centrifugal Pumps
Made of PVDF or PP with Magnetic Coupling

Details about NHM
  • Hermetically sealed, magnetic coupling, PP or PVDF
  • Up to 95 °C, flow rate up to 42 m³/h, head up to 27 m
  • Up to 76% efficiency: best-in-class for energy efficiency
  • Sliding shaft technology: wear-free, maintenance-free and durable
  • Hermetically sealed by contactless magnetic drive
  • Special containment shell geometry for high pressures and temperatures
NEOChem-Core
Series NEOCHEM CORE

Heavy-Duty Standardized Chemical Pumps
PFA-lined with Magnetic Coupling

Details about NEOCHEM CORE
  • Hermetically sealed and completely leak-free – sealless magnetic coupling
  • The PFA lining combined with a robust armored outer shell provides outstanding corrosion protection and prevents contamination
  • Back‑pull‑out design – fast service and replacement of the hydraulic/magnetic assembly without removing the piping, enabling minimal downtime
  • Suitable for high process temperatures up to +150 °C

NEOChem-Base
Series NEOCHEM BASE

Standardized Chemical Pumps
ETFE-lined with Magnetic Coupling

Details about NEOCHEM BASE
  • Hermetically sealed and completely leak-free – sealless magnetic coupling
  • The PFA lining combined with a robust armored outer shell provides outstanding corrosion protection and prevents contamination
  • Back‑pull‑out design – fast service and replacement of the hydraulic/magnetic assembly without removing the piping, enabling minimal downtime
  • Suitable for high process temperatures up to +150 °C
P
Series P

Normal-Priming Turbine Pumps
Made of PVDF or PP with Magnetic Coupling

Details about P
  • Very precise pump control due to linear pump curve
  • Hermetically sealed and absolutely leak-free (no mechanical seal)
  • Particularly suited for toxic, environmentally harmful and corrosive media
  • Very suitable for pumping low-boiling liquids

Centrifugal Pumps made of Plastic

Horizontal | Self-priming | Magnetic drive

SMP
Series SMP

Self-Priming Centrifugal Pumps
Made of PP with Magnetic Coupling

Details about SMP
  • Magnetic drive
  • Suction lift up to 7 m (depending on pump size)
  • Hermetically sealed and absolutely leak-free, since no shaft seal is required
  • Particularly suited for use with toxic, environmentally hazardous, and aggressive media

Centrifugal Pumps made of Plastic

Vertical | Submersible Pump | Sealless

T
Series T

Sealless Vertical Centrifugal Pumps
Made of PVDF or PP, Dry-Run Safe

Details about T
  • Absolutely dry run safe because of contact-free shaft and impeller rotation
  • No abrasion into the fluid, therefore well suited for high-purity applications
  • Maintenance-free operation as no wearing parts such as slide bearings or mechanical seal
Schmitt: Reinventing Flow.
