Vertikale Kreiselpumpe Edelstahl TE
stainless steel
vertical

TE Series

These durable and chemically resistant vertical plastic immersion pumps work in the standard version without seals and up to 95 °C. Optionally also available with shaft seal as vapour barrier.

The TE series features a vertical shaft extension that directly drives the impeller. The rotating shaft runs completely contact- and abrasion-free inside the housing (“cantilever” design). This design concept eliminates the need for shaft seals and additional bearings. more ...

Pump request
Downloads

Special features of the TE Series

  • Absolutely dry run safe because of contact-free shaft and impeller rotation
  • No abrasion into the fluid, therefore well-suited for high-purity applications
  • For high temperatures
  • Maintenance-free operation as no wearing parts such as slide bearings or mechanical seals

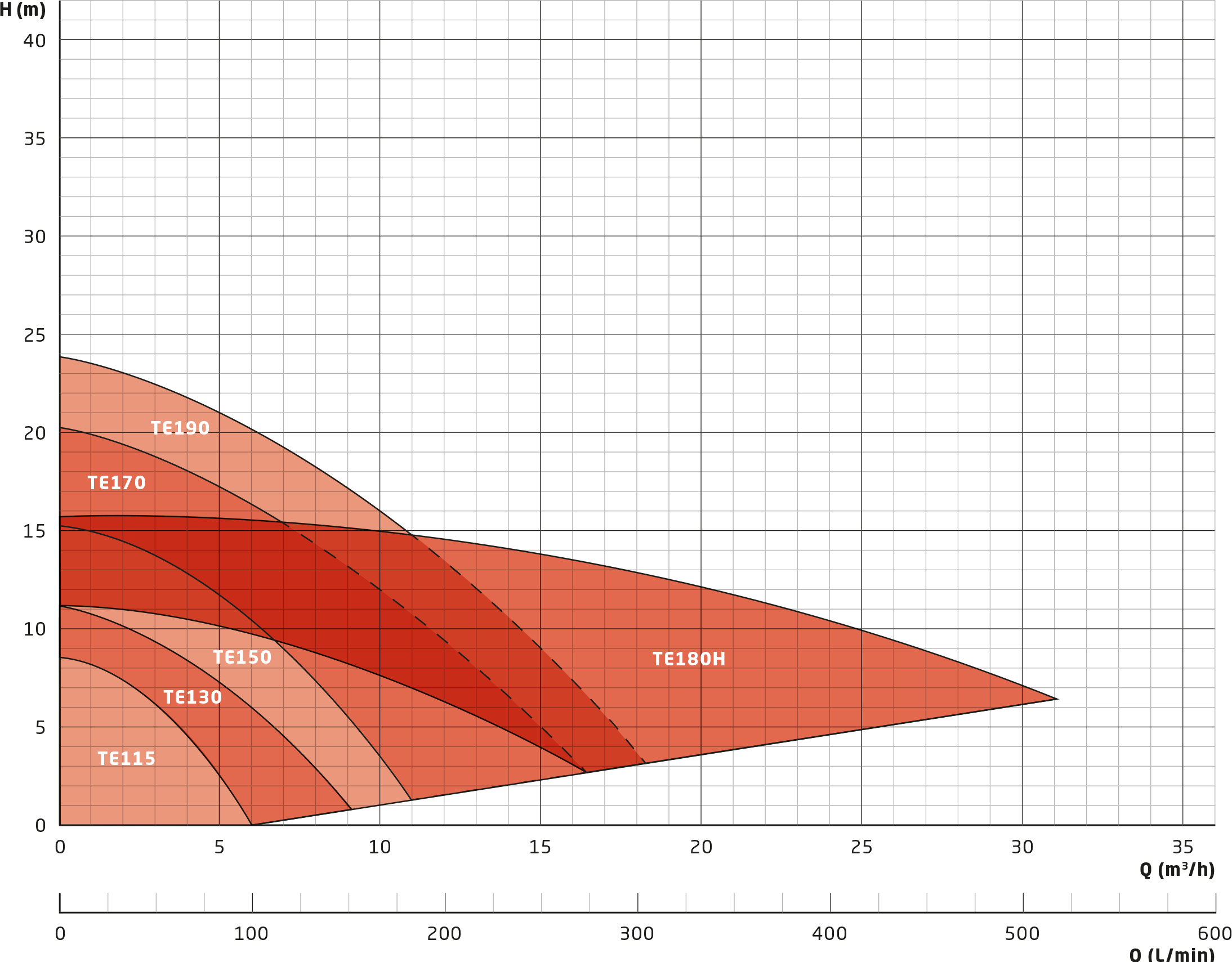

Pump curves

Features

  • Use at high temperatures up to +150 °C
  • Absolutely dry run safe because of contact-free shaft and impeller rotation
  • Maintenance-free operation as no wearing parts such as slide bearings or mechanical seals
  • Robust, thick-walled construction from only two materials (no thin-walled deep-drawing sheet metal)
  • Available with extension tubes in different lenghts to individually adjust the immersion depth
  • Open impeller (i.e. solids up to 3 mm grain size and 10 vol.% possible)
  • Optionally available with flange connections (from size 130)
  • Universally applicable, low-noise and compact close-coupled design
  • Corrosion resistant motor finish
  • Available in standardized immersion depths

Fields of application

The TE series is particularly suitable when tanks or immersion baths cannot be flange-mounted on the side or when dry running in the system cannot be excluded, as well as for high thermal stress



For example in the following applications:

  • Plating and surface coating
  • Semiconductor technology and solar cell production
  • PCB and electronics manufacturing
  • Wastewater and fresh water treatment
  • Laboratory equipment and medical technology
  • Emission controls and gas scrubbers
  • Battery production and energy storage
  • High-purity applications, demineralized water, ultrapure water

Characteristics

Pump housing / wet end: Stainless steel (V4A)

Elastomers: FKM, EPDM, FEP, FFKM

Operating conditions

  • Max. flow rate: up to 30 m³/h
  • Max. delivery head: up to 28 m
  • Liquid temperature: up to +150 °
  • Ambient temperature: -10 to 40 °C, higher temperatures on request
  • Pumps can be adapted to high-density liquids (up to 2.0)
  • TE series pumps can run dry for unlimited time (except special versions with shaft seals)

Motors

Standard motors (available from stock)

  • Three-phase motors: D230 / Y400 V-3ph @ 50 Hz, D265 / Y460 V-3ph @ 60 Hz, IP 55, Ins.-Cl. F, also with PTC
  • All motors from 0.75 kW have energy efficiency class IE3
  • Single-phase motors (up to 1.1 kW: 230 V-1ph, 50 / 60 Hz, IP 55, Isol.-Kl. F)
  • ATEX-certified motors (temperature rating T3)

Special motors (available on request, for example)

  • Special voltages and frequencies · ATEX-certified motors (temperature rating T4)
  • Three-phase motors with integrated drive / frequency converter
  • Four-pole motors with 1450 rpm @ 50 Hz / 1650 rpm @ 60 Hz
  • UL- and CSA-certified motors
  • Special types of protection, e.g. IP 65
  • Special insulation classes, e.g. tropical insulation
  • Multi-voltage, e.g. D220–290 / Y380–500 V, 50 Hz; D220–332 / Y380–575 V, 60 Hz
  • Direct-current motors (DC or BLDC)
